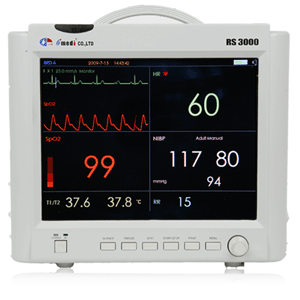

RS-3000 Multi Function Patient Monitor
ECG, HR, SPO2, NIBP Pulse, Resp, Temp, Etco2 |
| |
|
|
|
|
|
 |
RS-3000 Features |
|
|
| |
 |
Co2 probe
(Mainstream mode) |
 |
Co2 trap
(Sidestream mode) |
|
|
- Easy-to-read 12.1’color TFT display (touch screen optional) with maxi-Mum 12 waveforms
- Preventing from electro-surgical interface and defibrillator
- Maximum 96 hours of graphic and tabular trends of all parameters.
Up to1000 NIBP review, up to 10 hours of ECG waves
- Suitable for adult, pediatric and neonatal patients
- ST segment analysis, Arrhythmia analysis, Pace analysis, Calculation ofDrug concentration
- Up to 4 hours of working time with inner batteries
- Mainstream or sidestream EtCO2 is optional
- Various kinds of interface. RJ45 port., USB port. RS 232 port, audio inter-Face
- View up to 16 bedside monitors within the same LAN
- Easy and various bracket to fix.
|
|
| |
|
|
Technical Specification |
| |
 |
Safely
Meet the requirement off IEC0601-1 or GB9706 |
|
|
|
Size and weight
Size: 32cm(W) x 29cm(H) x 16cm(D)
Weight:6.6kg |
|
|
|
Environment
Temperature: 5~40℃
Relative humidity less than 80%, non-condensing
Air pressure 86~106kPa
Power voltage:AC100~250V frequency:50/60Hz |
|
|
|
Performance
Display : 12.1’color TFT.800x600
Indicator: Dual alarm indicator LEDS, AC power indicator LED.
Working and battery indicator LED
QRS beep and alarm sound
Operating key sound
Interface: Parameter socket. AC power input socket.
Network interface. Peripheral USE device interface.
RS232 port, Audio socket.
Alarm: Use-adjustable high and low limits
Categories: 3 levels high. Medium, low
Alarm visual display: intagliated parameter data
Battery: Rechargeable Lead-Acid battery |
|
|
|
ECG
Lead input: 3 leads or 5 leads(RA,LA,LL,RL,V)
Lead selection : I, ii, iii, aVR, aVL, aVF, V(5 leads)I, ii, iii(3 leads)
Gain selection: ¼, ½, 1, 2 auto
Sweep speed: 12,5,25.50mm/s
HR range: 15~350BPM
HR accuracy : 1BPm
Filter: Diagnostic mode: 0.05~130Hz. Monitoring mode: 0,.5~40Hz
Surgery mode: 1~20Hz
Protection: With 4000VAC/50Hz voltage in isolation
Against electrosurgical interface and defibritation
ST segment range : -2mV-+2mV
Accuracy: -0.8mV-+0.8mV: ±0.02mV or ±10%, Which is bigger
other range: unspecified
Arrhythmia analysis: yes |
|
|
|
Non-invasive pressure
Technology: oscillometric
Unit: mmHg/kPa
Measurement modes: Auto. Manual. STAT
Patient type: adult(A),pediatric(P), neonatal(N)
Range of SIS:40~280(A),40~220(P),40~135(N)mmHg
Range of DIA:10~220(A),10~160(P),10~100(N)mmHg
Range of mean:20~240(A),20~170(P),20~110(N)mmHg
Accuracy : ±5mmHg
Over-pressure protection: double safety protection |
|
|
|
SPO2 Measurement
SPO2 range: 0% ~ 100%
SPO2 accuracy: ±2% (70~100%), ±3%(50~69%)
PR range: 20~300BPM
PR accuracy: ±3BPM |
|
|
|
Respiration
Method: Thoracic impedance or from CO2 wave
Range: 7-150BPM (3-120BPM, CO2 mode)
Accuracy: ±2BPM
Apnea alarm delay: 10,15,20,25,30,35,40 |
|
|
|
Temperature
Range: 29℃~45℃
Accuracy: ±0.1℃
Channel : two |
|
|
|
EtCO2 (optional)
Technology: NON-DISPERSIVE INFRA RED
Type: Mainstream or sidestream mode
Measurement range: 0~99mmHg or 0~13kPa or 0~13%
Accuracy: ±2mmHg when 0~5.0% ±8% of reading when ＞5.0% |
|
|
|
IBP (optional)
Channels: 2
Measure range: -50~360mmHg
Accuracy(no sensor): ±2%
Bandwidth: Natural mode: DC~40Hz Filter mode: DC~12.5Hz |
|
|
|
Recorder(Optional)
Type: thermal array
Recording width: 48mm Paper rolling speed: 25mm/s
Recording type: ECG wave and real time parameter |
|
|
|
| |
 |
|
| Standard display |
|
|
 |
|
| Large-font display |
|
|
 |
|
| Bed to bed display |
|
|
 |
|
| oxyCRG dynic view display
Multi display selectable |
|
| |
|
|
|
|
|
|
 |
|
| HR histogram disply |
|
|
 |
|
| NBP table diplay |
|
|
 |
|
| ECG review display |
|
|
|
|
|
|
|
