Suction ECG Electrodes

NAME£ºEL-002

INTRODUCTION

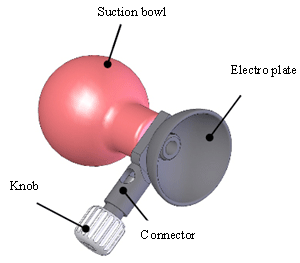

KnobSuction bowlElectro plateConnector
EL-002 Electrodes as the accessories of the Electrocardiogram . EL-002 Electrodes are fitting for all varieties of ECG Cable & Leadwire . It could connected with straight Jack , banana Jack and snap. Bowl type hardware plated with Ag & AgC1 ensures the accuracy and smooth transmittability of Electrocardiograph signal. Which makes electrodes more eligible for the body.

CAUTION

1. Long-time measurements with a strong negative pressure may cause reddening of the skin.
Especially when using the electrode on patients with delicate skin, squeeze the suction ball only lightly.
2. When insert into the jack, PLS, tighten the screws, to ensure the jack & are tight interlinked with the Suction Electrodes with no loose.
3. Disinfect the electrodes by wiping them down with a cloth moisten with alcohol ( 70% ).
4.Use available medical cleaning for surgical instruments to clean the electrodes.
5. Do not use metal tools to remove solid particles of dirt as this would destroy the plating.

GMEDI REF NO.	Description	Productor Guide
EL-002	Pediatric suction Ag/AgCI electrode, - Perfect fit for 3.0mm Din plug or 0.156-in, (4mm) banana plug or (4mm) Snap leadwires - Latex-free, - Adult size replacement bulb for all 15mm diameter electrodes. Bulb volume is 2cc - Metal Electrodes: Ag/AgCI. - I box = 6 bulbs
EL-003	Pediatric suction electrode, - Perfect fit for 3.0mm Din plug leadwires - Latex-free, - Adult size replacement bulb for all 17mm diameter electrodes. Bulb diameter is 23mm - Metal Electrodes: Nickel-plate. - I box = 6 bulbs
EL-004	Pediatric suction electrode, - Perfect fit for 0.156-in, (4mm) banana plug leadwires - Latex-free, - Adult size replacement bulb for all 17mm diameter electrodes. Bulb diameter is 23mm - Metal Electrodes: Nickel-plate. - I box = 6 bulbs
EL-005	Adult suction Ag/AgCI electrode, - Perfect fit for 3.0mm Din plug or 0.156-in, (4mm) banana plug or (4mm) Snap leadwires - Latex-free, - Adult size replacement bulb for all 15mm diameter electrodes. Bulb volume is 5cc - Metal Electrodes: Ag/AgCI. - I box = 6 bulbs
