Limb Clamp ECG Electrodes

NAME : EL-001

INSTRODUCTION

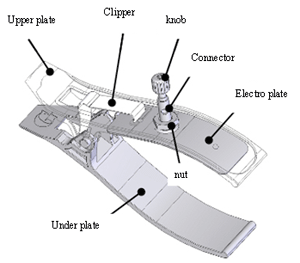

Upper plateClipperknobConnectorElectro plateUnder platenut
EL-001 Electrodes as the accessories of the electrocardiogram, which be applicable in most cardiogram equipments. It could connect with straight Jack, banana Jack and button connector, The Clips are made by special material, for increasing it¡¯s elasticity; This product is applicable to all patients ( Adult & Pediatric )

Electrodes

Remarks: Green, yellow, black and red with universal connector for acquisition of resting E.C.Gs.

Notes
1. Disinfect electrodes with a 2% solution of a disinfectant commonly used in hospitals.
2. After use, clean electrodes with a soft cloth and a mild detergent. disinfect this products. When use water to clean the products, pls. Attention to the water temp, under 35¡É
4.Do not use during defibrillation!

MANUFACTURER DECLARES:LAFEXPVC
According the EU Classify Standard: 93/42/EEC CLASS I

GMEDI REF NO.	Description	Productor Guide
EL-001	Adult Limb clamp Ag/AgCI electrode, clothespin type - Perfect fit for 3.0mm Dim plug or 0.156-in. (4mm) banana plug or (4mm)Snap leadwires. - Metal Electrodes: Ag/AgCI - I box = 4 electrodes - Color coding standard: IEC, Red(R), yellow(L), black(RF), green(F)
EL-006	Limb clamp electrodes, clothespin type. - Perfect fit for 3.0 mm Din plug leads. - Metal Electrodes : Nickel-plate. - I box = 4 electrodes - Color coding:IEC, red(R), yellow(L), black(RF), green(F)
EL-007	Limb clamp electrode, clothespin type - Perfect fit for 0.156-in, (4mm) banana plug leads - Metal Electrodes: Nickel-plate. - I box = 4 electrodes - Color coding:IEC, red(R), yellow(L), black(RF), green(F)
EL-008	Limb clamp electrode, clothespin type - Perfect fit for 3.0mm Dim plug leads - Metal Electrodes:: Nickel-plate. - I box = 44 electrodes - Color coding:AHA, white(RA), Black(LA), green(RL), red(LL)
EL-009	Limb clamp electrode, clothespin type - Perfect fit for 0.156-in, (4mm) banana plug leadwires - Metal Electrodes: Nickel-plate - I box = 4 electrodes - Color coding: AHA, white(RA), black(LA), green(RL), red(LL)
EL-010	Adult Limb clamp Ag/AgCI electrode, clothespin type - Perfect fit for 3.0mm Din plug or 0.156-in, (4mm) banana plug or (4mm)Snap leadwires - Metal Electrodes: Ag/AgCI. - I box = 4 electroudes - Color coding : AHA, white(RA), black(LA), green(RL), red(LL)	Same as above. But the color Coding standard is IEC. White(RA), Black(LA), green(RL), red(LL)
EL-011	Pediatric Limb clamp Ag/AgCI electrode, clothespin type - Perfect fit for 3.0mm Din plug or 0.156-in, (4mm) banana plug or (4mm)Snap leadwires - Metal Electrodes: Ag/AgCI - I box = 4 electrodes - Color coding standard: IEC, Red(R), yellow(L), black(RF), green(F)
EL-012	Pediatric Limb clamp Ag/AgCI electrode, clothespin type - Perfect fit for 3.0mm Din plug or 0.156-in, (4mm) banana plug or (4mm) Snap leadwires - Metal Electrodes: Ag/AgCI. - 1 box = 4 electrodes - Color coding : AHA, white(RA), black(LA), green(RL), red(LL)	Same as above. But the color coding standard in IEC, white(RA), Black(LA), green(RL), red(LL)
